Google Map View Drawing Mixin

Add drawing tools to Google Map view in Odoo

Technical Name:
web_widget_google_map_drawing
Version:
12.0
License:
Author:
Yopi Angi
https://odoo-community.org/web/image/product.template/9118/image_1920?unique=8765f90
  • Odoo Version

Terms and Conditions

Google Map View Drawing Mixin

Beta License: AGPL-3 OCA/geospatial Translate me on Weblate Try me on Runboat

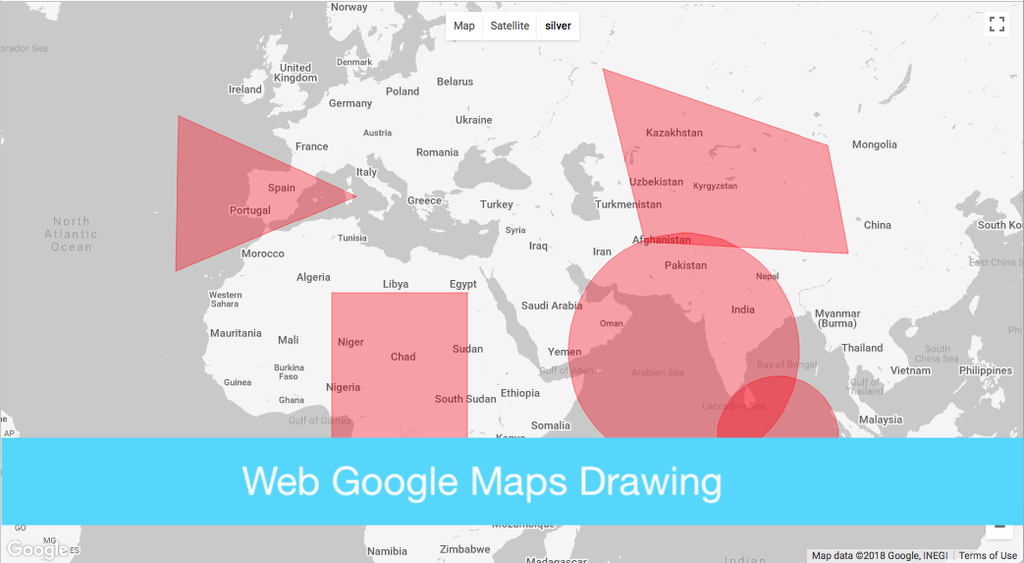

This module extends the Google Map web view in Odoo to allow users to draw polygons, rectangles, and circles on the map.

[![Demo](https://i.ytimg.com/vi/DDUFT6XP8AU/2.jpg)](https://youtu.be/DDUFT6XP8AU "Demo")

More information about the drawing tools can be found [here](https://developers.google.com/maps/documentation/javascript/examples/drawing-tools)

This module will support three kind of shapes: - [Rectangle](https://developers.google.com/maps/documentation/javascript/examples/rectangle-simple) - [Polygon](https://developers.google.com/maps/documentation/javascript/examples/polygon-simple) - [Circle](https://developers.google.com/maps/documentation/javascript/examples/polygon-simple)

Table of contents

Usage

This module provides an extendable framework and cannot be used on its own. The following provides information on how to implement it for your own module.

## Drawing Mixin

To ease the implementation of this feature, a mixin class has been defined that you can use in your model

class GoogleMapDrawingShapeMixin(models.AbstractModel):
    _name = 'google.map.drawing.shape.mixin'
    _description = 'Google Maps Shape Mixin'
    _rec_name = 'shape_name'

    shape_name = fields.Char(string='Name')
    shape_area = fields.Float(string='Area')
    shape_radius = fields.Float(string='Radius')
    shape_description = fields.Text(string='Description')
    shape_type = fields.Selection([
        ('circle', 'Circle'),
        ('polygon', 'Polygon'),
        ('rectangle', 'Rectangle')],
        string='Type', default='polygon', required=True)
    shape_paths = fields.Text(string='Paths')

    @api.multi
    def decode_shape_paths(self):
        self.ensure_one()
        return safe_eval(self.shape_paths)

How to use the widget

<field name="shape_paths" widget="map_drawing_shape"/>

How to load shape(s) on map view

<record id="view_res_partner_area_map" model="ir.ui.view">
    <field name="name">view.res.partner.area.map</field>
    <field name="model">res.partner.area</field>
    <field name="arch" type="xml">
        <map library="drawing" string="Shape">
            <field name="partner_id"/>
            <field name="shape_name"/>
            <field name="shape_description"/>
            <field name="shape_type"/>
            <field name="shape_radius"/>
            <field name="shape_area"/>
            <field name="shape_paths"/>
            <templates>
                <t t-name="kanban-box">
                    <div class="oe_kanban_global_click">
                        <div class="oe_kanban_details">
                            <strong class="o_kanban_record_title oe_partner_heading">
                                <field name="shape_name"/>
                            </strong>
                            <div>
                                <field name="shape_description"/>
                            </div>
                            <div attrs="{'invisible': [('shape_type', 'not in', ['rectangle', 'polygon'])]}">
                                Area: <field name="shape_area"/>
                            </div>
                            <div attrs="{'invisible': [('shape_type', '!=', 'circle')]}">
                                Radius: <field name="shape_radius"/>
                            </div>
                        </div>
                    </div>
                </t>
            </templates>
        </map>
    </field>
</record>

Bug Tracker

Bugs are tracked on GitHub Issues. In case of trouble, please check there if your issue has already been reported. If you spotted it first, help us to smash it by providing a detailed and welcomed feedback.

Do not contact contributors directly about support or help with technical issues.

Credits

Authors

  • Yopi Angi

Contributors

Maintainers

This module is maintained by the OCA.

Odoo Community Association

OCA, or the Odoo Community Association, is a nonprofit organization whose mission is to support the collaborative development of Odoo features and promote its widespread use.

Current maintainers:

gityopie brian10048

This module is part of the OCA/geospatial project on GitHub.

You are welcome to contribute. To learn how please visit https://odoo-community.org/page/Contribute.
